Introduction
Grinding steel balls are a main tool for grinding materials, usually used in ball mills. Grinding steel balls produce abrasive effects through collision and friction with materials, thereby achieving the grinding effect of materials
Forged Ball Details:
| Material |
Chemical Elements |
|
| C |
Si |
Mn |
P/S |
Cr |
Hardness (HRC) |
| 45# |
0.42-0.50 |
0.17-0.37 |
0.5-0.8 |
<0.035 |
<0.25 |
60-65 |
| 60MN |
0.55-0.65 |
0.17-0.37 |
0.7-1.0 |
<0.04 |
<0.25 |
58-63 |
| B2 |
0.72-0.85 |
0.17-0.37 |
0.7-1.0 |
<0.04 |
0.4-0.6 |
55-58 |
| B3 |
0.58-0.66 |
1.3-1.9 |
0.65-0.8 |
<0.025 |
0.7-0.9
|
56-65 |
| B6 |
0.97-1.03 |
0.2-0.3 |
1.0-1.1 |
<0.025 |
0.5-0.6 |
61-65 |
Casting Ball
Casting ball, also called a casting grinding ball, is made from scrap steel, scrap metal, and other trashed materials. The above mentioned materials are highly molten and conduct a continuous current after being heated. During the smelting stage, a large amount of metal elements such asvanadium, iron and manganese are first added to the flue gas to achieve the desired and predetermined yield. These elements can then pour the super-molten iron into a production line model of a steel making plant.

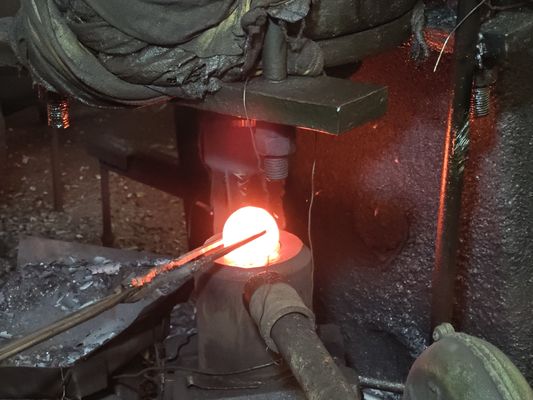

1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering

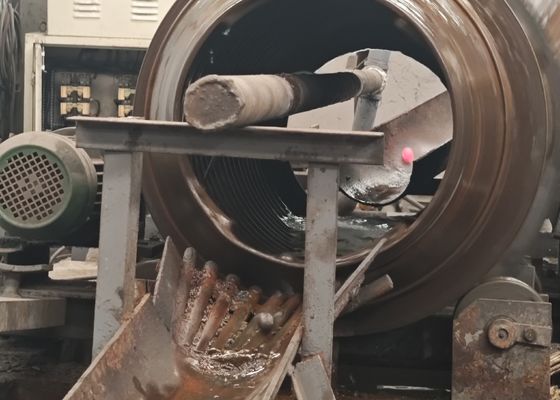

2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection
Test
Packing & Shipping
Steel drum (800-950kg per drum)
Container Bag (1000kg per bag)
Two drums with Pallet
Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
